Introduction
The following document describes the use of the Airzone Cloud Websocket API. The Websocket API provides a push interface for user and device related events. Its use is intended to be done when using the Web API. To fully understand the API, please refer to the Web API.
Two different stages can be identified:
Initial connection
Authentication periodic check
Initial connection
Airzone's Cloud Websocket API allows the subscription to user related events and installation related events.
Subscription to User specific events
To start receiving user related events, it is needed to establish a Secure WebSocket connection (WSS) through the following URL:
m.airzonecloud.com/api/v1/websockets/userWhen establishing the WebSocket connection, the server will automatically subscribe the client to the
USER and INSTALLATION namespace default events, specifically the following events (please refer to the API for details of each event):
User namespace:
- USERS.update
- USERS.delete
- USERS.completed-user-invitation
Installation namespace:
- INSTALLATIONS.user-deleted-installation
- INSTALLATIONS.user-invited-installations
- INSTALLATIONS.user-confirmed-installation
- INSTALLATIONS.user-deleted-installation-invitation
workflow
The following image describes the intented use of the websocket API:
Subscription to Site specific events
To start receiving site's devices related events, it is needed to establish a Secure WebSocket connection (WSS) through the following URL:
m.airzonecloud.com/api/v1/websockets/installation?installationId={yourInstallationId}
These events are related to the user's account, and are independent of any Site the user belongs to.
For installation's devices related URL. the server will automatically subscribe the client to INSTALLATION, WEBSERVER_UPDATES and DEVICES_UPDATES namespaces described events, specifically the following events (please refer to the API for details of each event):
The server will start sending the following events associated with the Site and the devices included in items:
Installation namespace:
- INSTALLATIONS.delete-ws
- INSTALLATIONS.added-ws-installation
- INSTALLATIONS.installation-updated-discovery
- INSTALLATIONS.devices-moved-group
- INSTALLATIONS.edit-installation-location
- INSTALLATIONS.edit-installation-meta
- INSTALLATIONS.user-edit-permission-installation
- INSTALLATIONS.started-exec-scene
- INSTALLATIONS.finishedExecScene
Webserver's changes namespace:
- WEBSERVER_UPDATES.{wsId}
Device's changes namespace:
- DEVICES_UPDATES.{wsId}.{deviceId}
Then, the server will send the current state of each device belonging to the site, through DEVICE_STATE events. This is useful to have a current snapshot of the site's devices. Once sent the state for every device, a DEVICE_STATE_END event will be sent.

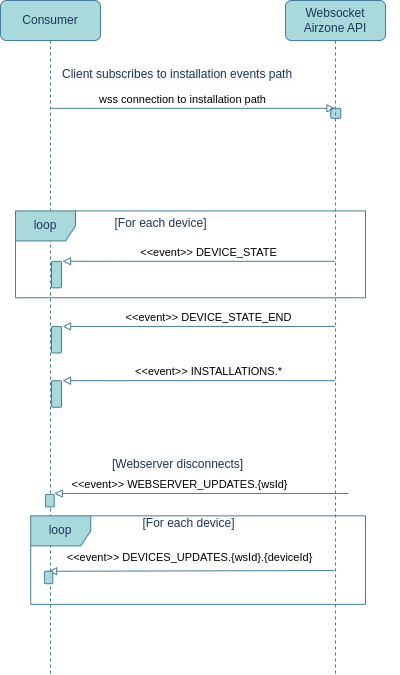

workflow
The following image describes the intented use of the websocket API:
Authentication periodic check
Once the user establishes the websocket connection, a periodic auth event will be sent from the server. Upon receiving the event, the user must respond with its current authentication token (same token used in the Authorization header for the Web API requests).
Serve will send a correlation id field that identifies the request. Client should send jwt data with the receiving correlation id with the following format:
{
corrId: <request corrId>
body: {
jwt: <user jwt token>
}
}
Server will close the connection in the following cases:
- Client dont send JWT authentication response in the following 5 seconds.
- In case of the token being invalid (expired or invalidated), the server will close the connection. The user will need to obtain a new valid token and reestablish the connection.
In such cases, server will append to close event a 4001 status code and a description message.
workflow
The following image describes the intented use of the websocket API:
In case of needing to listen to multiple sites at the same time, one independent websocket connection per each site should be established.
Code examples
Below are two example codes by which a websocket client can listen to airzone user events and installation events.
User events
const jwt = <your jwt token> const client = new WebSocket('wss://devazglobal.airzonecloud.com/api/v1/websockets/user', {
headers: {
Authorization: `Bearer ${jwt}`,
},
rejectUnauthorized: false,
});
client.on('open', () => {
console.info('Airzone WS connection established');
});
// Helper function to handle message parsing
const parseMessage = (message) => {
try {
return JSON.parse(message.toString());
} catch (error) {
console.error('Failed to parse message', { error });
return null;
}
};
client.on('message', async (message) => {
const data = parseMessage(message);
if (!data) return;
switch (data.event) {
case 'auth': {
const response = { corrId: data.corrId, body: { jwt } };
client.send(JSON.stringify(response));
break;
}
case 'USER.update': {
// Handle event here
break;
}
case 'USERS.delete': {
// Handle event here
break;
}
case 'USERS.completed-user-invitation': {
// Handle event here
break;
}
// Handle other events here ...
default:
console.warn('Received unknown message', { message: data.body });
break;
}
});
client.on('error', (error) => {
console.error(`Airzone WS connection error: ${new Date().toISOString()} ${error}`);
});
client.on('close', (code, reason) => {
console.info(`Airzone WS connection closed: ${new Date().toISOString()} Code: ${code}, Reason: ${reason}`);
});
Installation events
const jwt = <your jwt token>
const client = new WebSocket('wss://devazglobal.airzonecloud.com/api/v1/websockets/installation?installationId=64184eb48e68ffbe3a94cadc', {
headers: {
Authorization: `Bearer ${jwt}`,
},
rejectUnauthorized: false,
});
client.on('open', () => {
console.info('Airzone WS connection established');
});
// Helper function to handle message parsing
const parseMessage = (message) => {
try {
return JSON.parse(message.toString());
} catch (error) {
console.error('Failed to parse message', { error });
return null;
}
};
client.on('message', async (message) => {
const data = parseMessage(message);
if (!data) return;
switch (data.event) {
case 'auth': {
const response = { corrId: data.corrId, body: { jwt } };
client.send(JSON.stringify(response));
break;
}
case 'DEVICES_UPDATES.{yourWsId}.{yourDeviceId}': {
// Handle event here
break;
}
case 'INSTALLATIONS.started-exec-scene': {
// Handle event here
break;
}
case 'INSTALLATIONS.user-edit-permission-installation': {
// Handle event here
break;
}
// Handle other events here ...
default:
console.warn('Received unknown message', { message: data.body });
break;
}
});
client.on('error', (error) => {
console.error(`Airzone WS connection error: ${new Date().toISOString()} ${error}`);
});
client.on('close', (code, reason) => {
console.info(`Airzone WS connection closed: ${new Date().toISOString()} Code: ${code}, Reason: ${reason}`);
});
This page can also be downloaded in AsyncAPI format through this link.
- #User
- #Installation
- #Auth
Servers
- m.airzonecloud.com/api/v1/websocketswssproduction
Production server
Security:
- HTTP
- Scheme: bearer
- Bearer format: JWT
Operations
SUB user
Channel where user events are published.
Operation IDpublishAvailable only on servers:
object- #Auth
Accepts the following message:
User's JWT authentication response.AuthMsgResponseMessage IDAuthMsgResponseEvent to authenticate user in periodic authentication check.
restricted any allOf- #Auth
Examples
{ "corrId": "d4edbe80-a3b5-4942-87fd-f341098ccf89", "body": { "jwt": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJGTXdydVEyN29Ldkt1S1Zy bWlhS1pHaGhhd09GTnNOTCIsInRva2VuSWQiOiI1OWYyODQ5Yy02MDMyLTQwYTItYjc0O C04OGE0OTljN2UwMGMiLCJzY29wZXMiOnsiYXoiOiI2MjE3N2NhYmE4Y2RiZDIxN2I1MD hmNDcifSwianRpIjoiMGM5NDk4MGEtYzdjZC00YjA3LWI2M2MtMWNkODg0NmE3N2QxIiw iaWF0IjoxNjk1MDUxMTI2LCJleHAiOjE2OTUyMjM5MjZ9.r0-FMqVm_xmy7AkeRbyLP0B vPC4nTR4IAVA57fDoowQ" } }This example has been generated automatically.
PUB user
Channel where user events are published.
Operation IDsubscribeAvailable only on servers:
object- #User
Accepts one of the following messages:
- #0User's settings updatedUSERS.update
Event indicating the user has updated his settings
Message IDUSERS.updateThis event is fired upon any change the user makes in his account's settings.
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "param": "lang", "value": "string" } }This example has been generated automatically.
- #1User's account deletedUSERS.delete
Event indicating the user's account has been deleted
Message IDUSERS.deleteThis event is fired when the user has deleted his account. This will automatically close the channel.
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "user_id": "5dd28d9e46aea00329682378" } }This example has been generated automatically.
- #2User's completed an invitationUSERS.completed-user-invitationMessage IDUSERS.completed-user-invitation
Event indicating that user completed an invitation
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "user_id": "5dd28d9e46aea00329682378", "name": "Edu" } }This example has been generated automatically.
- #3User's account deletedINSTALLATIONS.user-deleted-installationMessage IDINSTALLATIONS.user-deleted-installation
Event for informing of user being removed from an installation
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380" } }This example has been generated automatically.
- #4User's invited to an installationINSTALLATIONS.user-invited-installationsMessage IDINSTALLATIONS.user-invited-installations
Event for informing of user being invited to a new installation
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "user_id": "5dd28d9e46aea00329682378" } }This example has been generated automatically.
- #5User's confirmed an invitation to an installationINSTALLATIONS.user-confirmed-installationMessage IDINSTALLATIONS.user-confirmed-installation
Event for informing of user confirmed an invitation to an installation
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "user_id": "5dd28d9e46aea00329682378" } }This example has been generated automatically.
- #6User's rejected/deleted an invitation to an installationINSTALLATIONS.user-deleted-installation-invitationMessage IDINSTALLATIONS.user-deleted-installation-invitation
Event for informing of rejection/deletion of an invitation to an installation
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "user_id": "5dd28d9e46aea00329682378" } }This example has been generated automatically.
- #7User's JWT authentication request.
Event to authenticate user in periodic authentication check.
restricted any allOf- #Auth
Examples
{ "event": "auth", "corrId": "d4edbe80-a3b5-4942-87fd-f341098ccf89", "args": [ [ "authenticate" ] ] }This example has been generated automatically.
SUB installation
Channel where related installations events are published.
Operation IDpublishAvailable only on servers:
objectinstallationIdrequiredstringsite's installation_id
object- #Auth
Accepts the following message:
User's JWT authentication response.AuthMsgResponseMessage IDAuthMsgResponseEvent to authenticate user in periodic authentication check.
restricted any allOf- #Auth
Examples
{ "corrId": "d4edbe80-a3b5-4942-87fd-f341098ccf89", "body": { "jwt": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJGTXdydVEyN29Ldkt1S1Zy bWlhS1pHaGhhd09GTnNOTCIsInRva2VuSWQiOiI1OWYyODQ5Yy02MDMyLTQwYTItYjc0O C04OGE0OTljN2UwMGMiLCJzY29wZXMiOnsiYXoiOiI2MjE3N2NhYmE4Y2RiZDIxN2I1MD hmNDcifSwianRpIjoiMGM5NDk4MGEtYzdjZC00YjA3LWI2M2MtMWNkODg0NmE3N2QxIiw iaWF0IjoxNjk1MDUxMTI2LCJleHAiOjE2OTUyMjM5MjZ9.r0-FMqVm_xmy7AkeRbyLP0B vPC4nTR4IAVA57fDoowQ" } }This example has been generated automatically.
PUB installation
Channel where related installations events are published.
Operation IDsubscribeAvailable only on servers:
objectinstallationIdrequiredstringsite's installation_id
object- #Installation
Accepts one of the following messages:
- #0User's webserver has been deletedINSTALLATIONS.deleted-wsMessage IDINSTALLATIONS.deleted-ws
Event for informing that a webserver has been deleted.
restricted any allOf- #User
Examples
{ "event": "USERS.completed-user-invitation", "body": { "ws_id": "string", "installation_id": "5dd28d9e46aea00329682380", "devices_ids": [ "string" ] } }This example has been generated automatically.
- #1User's scene has been executedINSTALLATIONS.finished-exec-sceneMessage IDINSTALLATIONS.finished-exec-scene
Event for informing the ending of the execution of an scene
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "scene_id": "string" } }This example has been generated automatically.
- #2User's scene has been executedINSTALLATIONS.started-exec-sceneMessage IDINSTALLATIONS.started-exec-scene
Event for informing the ending of the execution of an scene
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "scene_id": "string" } }This example has been generated automatically.
- #3User's installation permissions access has been changedINSTALLATIONS.user-edit-permission-installationMessage IDINSTALLATIONS.user-edit-permission-installation
Event for informing changes in the user's permission access in an installation
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "user_id": "5dd28d9e46aea00329682378", "access_type": "basic", "groups": [ { "group_id": "5dd28d9e46aea00329682371", "name": "Planta baja", "icon": 0, "devices": [ { "device_id": "5dd28d9e46aea00329682378", "name": "Salón", "icon": 2, "type": "az_zone", "ws_id": "AA:BB:CC:DD:EE:FF" } ] } ] } }This example has been generated automatically.
- #4User's installation metaparameters has changed.INSTALLATIONS.edit-installation-metaMessage IDINSTALLATIONS.edit-installation-meta
Event for informing changes in the installation's metaparameters
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "change": { "name": "Casa" } } }This example has been generated automatically.
- #5User's installation location has changed.INSTALLATIONS.edit-installation-locationMessage IDINSTALLATIONS.edit-installation-location
Event for informing changes in the installation's location
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "location": { "_id": "5dd28d9e46aea00329682370", "google_place_id": "ChIJpbwTNaZ5lVQRrZW-t-PxZiE", "timezoneId": "Europe/Madrid", "coords": { "lat": 45.54, "lng": 3.45 }, "text": { "city": { "es": "Málaga" }, "country": { "es": "España" } } } } }This example has been generated automatically.
- #6Event for informing an update in the webserver's topologyINSTALLATIONS.installation-updated-discoveryMessage IDINSTALLATIONS.installation-updated-discovery
Event for informing an update in the webserver's topology
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "wsId": "string" } }This example has been generated automatically.
- #7Installation's device has been moved to a different group.INSTALLATIONS.devices-moved-groupMessage IDINSTALLATIONS.devices-moved-group
Event for informing that device has been moved to a different group.
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "device_id": "string", "installation_id": "5dd28d9e46aea00329682380" } }This example has been generated automatically.
- #8A new webserver has been added to an installation.INSTALLATIONS.added-ws-installationMessage IDINSTALLATIONS.added-ws-installation
Event for informing of a new webserver in an installation
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installation_id": "5dd28d9e46aea00329682380", "wsId": "string" } }This example has been generated automatically.
- #9Installation's device current state.DEVICE_STATEMessage IDDEVICE_STATE
Event with information of the device state.
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "device_id": "64953973418c8b8aa228f6e8", "device_type": "aidoo_it", "ws_id": "AA:BB:CC:DD:EE:FF", "status": { "humidity": 23, "block_mode": false, "block_off": false, "block_on": false, "block_autospeed": false, "block_autotemp": false, "block_dryspeed": false, "block_drytemp": false, "block_fantemp": true, "block_setpoint": false, "manufacturer": { "_id": 2, "text": "Mitsubishi Electric" }, "aidooit": false, "machineready": false, "isConnected": true, "power": true, "mode": 1, "mode_available": [ 0, 1, 2, 3, 4 ], "auto_mode": 2, "speed_values": [ 0, 1, 2, 3 ], "speed_type": 0, "step": { "fah": 0, "celsius": 0 }, "range_sp_cool_air_min": { "fah": 68, "celsius": 25 }, "range_sp_cool_air_max": { "fah": 68, "celsius": 25 }, "range_sp_hot_air_max": { "fah": 68, "celsius": 25 }, "range_sp_hot_air_min": { "fah": 68, "celsius": 25 }, "range_sp_dry_air_max": { "fah": 68, "celsius": 25 }, "range_sp_dry_air_min": { "fah": 68, "celsius": 25 }, "range_sp_vent_air_max": { "fah": 68, "celsius": 25 }, "range_sp_vent_air_min": { "fah": 68, "celsius": 25 }, "range_sp_emerheat_air_min": { "fah": 68, "celsius": 25 }, "range_sp_emerheat_air_max": { "fah": 68, "celsius": 25 }, "range_sp_auto_air_min": { "fah": 68, "celsius": 25 }, "range_sp_auto_air_max": { "fah": 68, "celsius": 25 }, "range_sp_stop_air_min": { "fah": 68, "celsius": 25 }, "range_sp_stop_air_max": { "fah": 68, "celsius": 25 }, "setpoint_air_heat": { "fah": 68, "celsius": 25 }, "setpoint_air_emerheat": { "fah": 68, "celsius": 25 }, "setpoint_air_cool": { "fah": 68, "celsius": 25 }, "setpoint_air_vent": { "fah": 68, "celsius": 25 }, "setpoint_air_dry": { "fah": 68, "celsius": 25 }, "setpoint_air_auto": { "fah": 68, "celsius": 25 }, "setpoint_air_stop": { "fah": 68, "celsius": 25 }, "double_sp": true, "local_temp": { "fah": 68, "celsius": 25 }, "speed_conf": 0, "eco_conf": "off", "eco_values": [ "off", "manual", "a", "a_p", "a_pp" ], "usermode_conf": "comfort", "usermode_values": [ "stop", "comfort", "unoccupied", "night", "eco", "vacation" ], "aq_mode_conf": "off", "aq_mode_values": [ "off", "on", "auto" ], "warnings": [ { "_id": "window" } ], "errors": [ { "_id": "trv_mainboard_missing" } ], "aqpm1_0": 23, "aqpm2_0": 3, "aqpm10": 10, "aq_quality": "bad" } } }This example has been generated automatically.
- #10Installation's device current state retrieval completed.DEVICE_STATE_ENDMessage IDDEVICE_STATE_END
Event for informing that the device status retrieval has been completed.
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "installationId": "64953973418c8b8aa228f6e8" } }This example has been generated automatically.
- #11User's JWT authentication request.
Event to authenticate user in periodic authentication check.
restricted any allOf- #Auth
Examples
{ "event": "auth", "corrId": "d4edbe80-a3b5-4942-87fd-f341098ccf89", "args": [ [ "authenticate" ] ] }This example has been generated automatically.
- #12Webservers's updates info.WEBSERVER_UPDATES.{wsId}Message IDWEBSERVER_UPDATES.{wsId}
Event with information of the webserver update changes.
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "ws_id": "string", "change": {} } }This example has been generated automatically.
- #13Devices's updates info.DEVICES_UPDATES.{wsId}.{deviceId}Message IDDEVICES_UPDATES.{wsId}.{deviceId}
Event with information of the device state update.
restricted any allOf- #Installation
Examples
{ "event": "USERS.completed-user-invitation", "body": { "ws_id": "string", "change": {} } }This example has been generated automatically.
Messages
- #1User's account deletedUSERS.delete
Event indicating the user's account has been deleted
Message IDUSERS.deleteThis event is fired when the user has deleted his account. This will automatically close the channel.
restricted any allOf- #User
- #2User's settings updatedUSERS.update
Event indicating the user has updated his settings
Message IDUSERS.updateThis event is fired upon any change the user makes in his account's settings.
restricted any allOf- #User
- #3User's completed an invitationUSERS.completed-user-invitationMessage IDUSERS.completed-user-invitation
Event indicating that user completed an invitation
restricted any allOf- #User
- #4User's account deletedINSTALLATIONS.user-deleted-installationMessage IDINSTALLATIONS.user-deleted-installation
Event for informing of user being removed from an installation
restricted any allOf- #User
- #5User's invited to an installationINSTALLATIONS.user-invited-installationsMessage IDINSTALLATIONS.user-invited-installations
Event for informing of user being invited to a new installation
restricted any allOf- #User
- #6User's confirmed an invitation to an installationINSTALLATIONS.user-confirmed-installationMessage IDINSTALLATIONS.user-confirmed-installation
Event for informing of user confirmed an invitation to an installation
restricted any allOf- #User
- #7User's rejected/deleted an invitation to an installationINSTALLATIONS.user-deleted-installation-invitationMessage IDINSTALLATIONS.user-deleted-installation-invitation
Event for informing of rejection/deletion of an invitation to an installation
restricted any allOf- #User
- #8User's webserver has been deletedINSTALLATIONS.deleted-wsMessage IDINSTALLATIONS.deleted-ws
Event for informing that a webserver has been deleted.
restricted any allOf- #User
- #9User's scene has been executedINSTALLATIONS.finished-exec-sceneMessage IDINSTALLATIONS.finished-exec-scene
Event for informing the ending of the execution of an scene
restricted any allOf- #Installation
- #10User's scene has been executedINSTALLATIONS.started-exec-sceneMessage IDINSTALLATIONS.started-exec-scene
Event for informing the ending of the execution of an scene
restricted any allOf- #Installation
- #11User's installation permissions access has been changedINSTALLATIONS.user-edit-permission-installationMessage IDINSTALLATIONS.user-edit-permission-installation
Event for informing changes in the user's permission access in an installation
restricted any allOf- #Installation
- #12User's installation metaparameters has changed.INSTALLATIONS.edit-installation-metaMessage IDINSTALLATIONS.edit-installation-meta
Event for informing changes in the installation's metaparameters
restricted any allOf- #Installation
- #13User's installation location has changed.INSTALLATIONS.edit-installation-locationMessage IDINSTALLATIONS.edit-installation-location
Event for informing changes in the installation's location
restricted any allOf- #Installation
- #14Event for informing an update in the webserver's topologyINSTALLATIONS.installation-updated-discoveryMessage IDINSTALLATIONS.installation-updated-discovery
Event for informing an update in the webserver's topology
restricted any allOf- #Installation
- #15Installation's device has been moved to a different group.INSTALLATIONS.devices-moved-groupMessage IDINSTALLATIONS.devices-moved-group
Event for informing that device has been moved to a different group.
restricted any allOf- #Installation
- #16A new webserver has been added to an installation.INSTALLATIONS.added-ws-installationMessage IDINSTALLATIONS.added-ws-installation
Event for informing of a new webserver in an installation
restricted any allOf- #Installation
- #17Installation's device current state.DEVICE_STATEMessage IDDEVICE_STATE
Event with information of the device state.
restricted any allOf- #Installation
- #18Installation's device current state retrieval completed.DEVICE_STATE_ENDMessage IDDEVICE_STATE_END
Event for informing that the device status retrieval has been completed.
restricted any allOf- #Installation
- #19Webservers's updates info.WEBSERVER_UPDATES.{wsId}Message IDWEBSERVER_UPDATES.{wsId}
Event with information of the webserver update changes.
restricted any allOf- #Installation
- #20Devices's updates info.DEVICES_UPDATES.{wsId}.{deviceId}Message IDDEVICES_UPDATES.{wsId}.{deviceId}
Event with information of the device state update.
restricted any allOf- #Installation
- #21User's JWT authentication request.AuthMsgReqMessage IDAuthMsgReq
Event to authenticate user in periodic authentication check.
restricted any allOf- #Auth
- #22User's JWT authentication response.AuthMsgResponseMessage IDAuthMsgResponse
Event to authenticate user in periodic authentication check.
restricted any allOf- #Auth
